NA-200QT Automatic Tubular Spreading Machine with Quarter turn device
NA-200QT Automatic Tubular Spreading Machine with Quarter turn device
Specialized for tubular fabric
Turn your fabric 90° before spreading
Make your spreading easier and more efficient:
• One-man operation
• Adjustable tension controller
• Adjustable fabric frame
• Inspect your fabric at the same time
• Material feeding drive system
Features:
Specialized for tubular fabric
Turn your fabric 90° before spreading
Make your spreading easier and more efficient:
• One-man operation
• Adjustable tension controller
• Adjustable fabric frame
• Inspect your fabric at the same time
• Material feeding drive system
Technical Data of Spreading Machine NA-200
- Spreading speed: Max. approx. 97m/min.
- Spreading height: 19cm.
- Passage height: 23cm.
- Longitudinal edge accuracy: ±3mm.
- Weight of cloth: 60kgs.
Component Description
- Layers preset control.
- Auto up & down control.
- Emergency stop device.
- Material feeding drive system
Standard Spreading Machine Device
- LCD touch panel.
- Fabric roll stand.
- Fabric inspection illumination.
- NA-200/4′ spreader with three fabric frames.
- NA-200/5′ spreader with four fabric frames.
- With operator stand.
TSM NA-200QT 100% Cotton Tubular Fabric

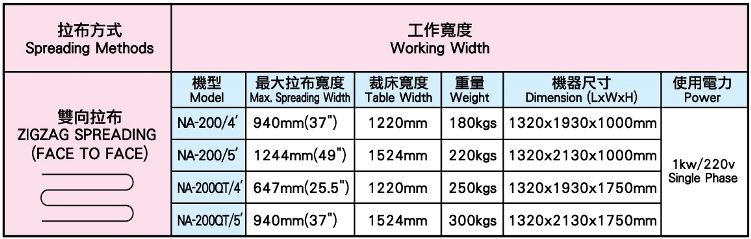

Specifications
