NA-600FN Knit / Woven Automatic Spreading Machine

NA-600FN Knit / Woven Automatic Spreading Machine

Specialized for both knit & woven fabric

Make your spreading easier and more efficient:
• One-man operation
• Dual material feeding system
• Automatic edge alignment
• Adjustable tension controller

Suitable for all types of fabric, equip with multiple functions.

(1) Suitable for all types of fabric and offers multiple functions.
(2) One-man operation which saves manpower and enhance work efficiency.
(3) Dual material feeding system which eliminates stretches.
(4) The accurate length wise spreading and the photoelectric automatic edge alignment function
provide even edge will save huge wastage of fabric than manual spreading.
(5) An adjustable tension control system.
(6) That provides synchronized material-feeding and cloth catch.

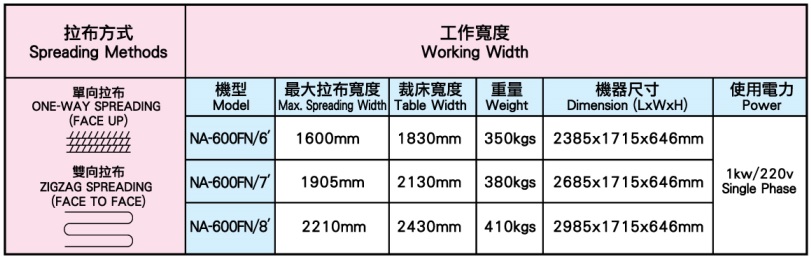

o Spreading speed: Max. approx. 97m/min.
o Spreading height: 20cm.
o Passage height: 23cm.
o Longitudinal edge accuracy: ±3mm.
o End edge accuracy: ±2mm.
o Diameter of cloth roll: 50cm.
o Weight of cloth roll: 80kgs.

o Layers preset control.
o Type of spreading control.
o Auto edge alignment.
o Auto up & down control.
o Two catchers for dual way spreading.
o Auto cutting control.
o Emergency stop control.
o Dual material feeding.
o Auto material feeding.
