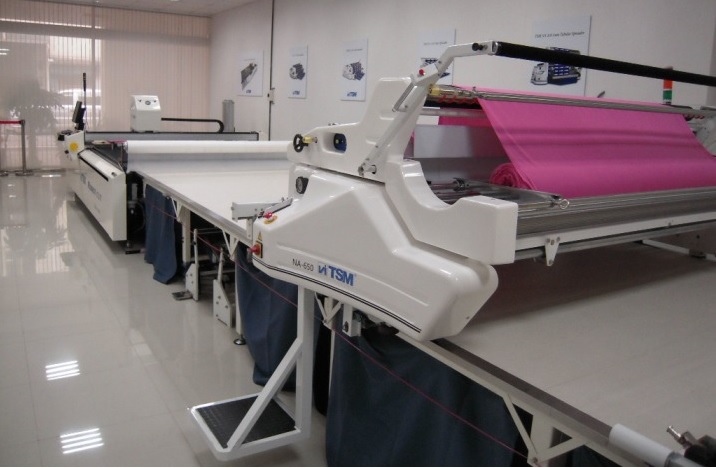

NA-650 Knit / Woven Automatic Spreading Machine

NA-650 Knit / Woven Automatic Spreading Machine

Specialized for both knit & woven fabric

Make your spreading easier and more efficient:
• One-man operation
• Dual material feeding system
• Loading is more stable by extended frame
• Automatic edge alignment
• Adjustable tension controller

Suitable for all types of fabric, equip with multiple functions.

(1)Suitable for all types of knit and offer multiple functions.
(2)One-man operation which saves manpower and enhance work efficiency.
(3)Dual material feeding system which eliminates stretch of fabric.
(4)Loading is more stable by extended frame.
(5)New cutter PA sleeve, reduce shaking when cutter is moving.
(6)Lighter feeding assistance bar, easy to operate.
(7)Power roller makes feeding smoothly.
(8)New designed power cradle FRP cover, easy to install and remove.
(9)New Panasonic PLC control system and encoder gear.

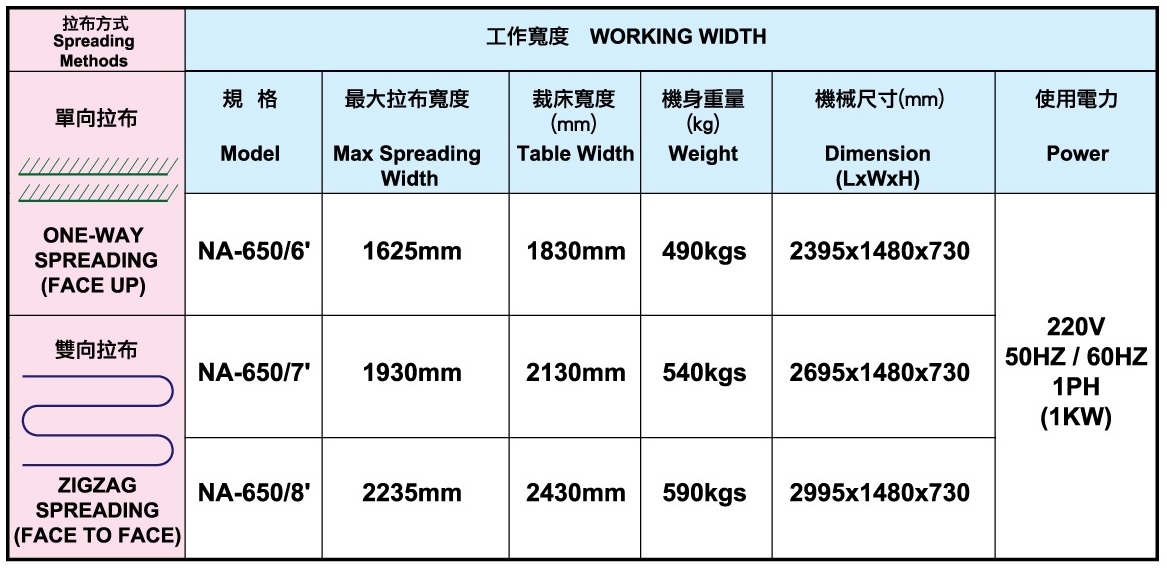

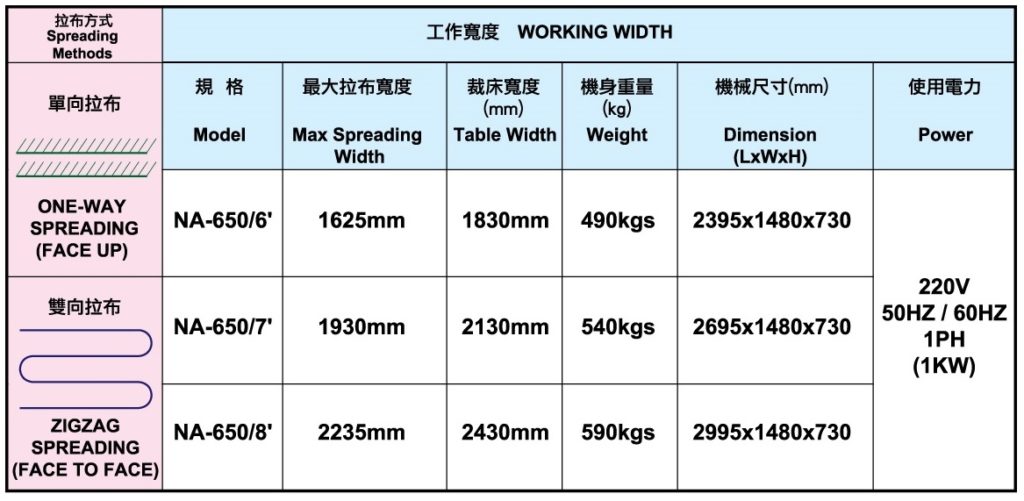

o Spreading speed: Max. approx. 97m/min.
o Spreading height: 20cm.
o Passage height: 23cm.
o Longitudinal edge accuracy: ±3mm.
o End edge accuracy: ±2mm.
o Diameter of cloth roll: 50cm.
o Weight of cloth roll: 80kgs.

o Layers preset control.
o Type of spreading control.
o Auto edge alignment.
o Auto up & down control.
o Two catchers for dual way spreading.
o Auto cutting control.
o Emergency stop control.
o Dual material feeding.
o Auto material feeding.
